Solving Aggressive Media Challenges with Humphrey’s 101 Series iDP Valve
As analytical, life science and microfluidic instruments continue to shrink, engineers face increasing challenges in delivering reliable fluid control within limited space. Miniaturization demands valves that provide exceptional chemical compatibility, precise flow control and long-term reliability while fitting into increasingly compact systems.

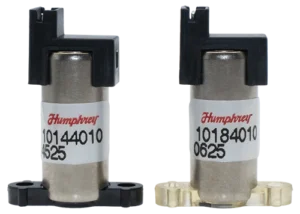

Humphrey’s 101 Series inert diaphragm-poppet (iDP) valve was engineered specifically for those demanding applications. Its compact design, chemically resistant wetted materials, and low internal volume make it an ideal solution for controlling aggressive liquids and gases without compromising performance.
What Makes the 101 Series iDP Valve Different?
The 101 Series iDP valve utilizes a flexible diaphragm that completely isolates the process media from the solenoid actuator. This physical barrier protects the valve’s actuating components from corrosive chemicals, biological fluids, solvents and cleaning agents, extending valve life while maintaining consistent performance.
Available wetted materials include:
- PEEK or Radel® valve bodies
- EPDM, FKM or FFKM elastomer options
- Chemically inert flow path
- High-temperature compatibility
This combination allows OEMs to confidently specify the valve for applications involving harsh reagents, sterilization chemicals and biological samples.
Engineered for Precision
The compact design minimizes dead volume and reduces the potential for cross-contamination between cycles.
Key performance features include:
- Extremely low internal volume
- 3 μL unactuated
- 30 μL actuated
- Flow rates up to 550 mL/min (water)
- Operating pressures up to 30 PSI (2 bar)
- 12 or 24 VDC coil options
- Ambient operating temperatures from -20°C to 65°C (-5°F to 150°F)

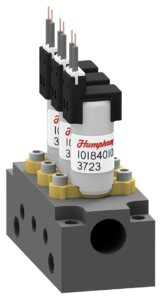

The valve’s small footprint also makes it well suited for custom manifolds and space-constrained instrument designs.
How Miniature Diaphragm-Poppet Valves Work
During operation, the energized solenoid lifts the diaphragm from the poppet seat, allowing media to flow through the valve. Upon de-energization, the diaphragm returns to the seat, creating a positive seal that prevents leakage, contamination and unnecessary media loss.
Because the valve retains very little residual media after closure, it’s particularly effective in applications that require rapid reagent switching and repeatable analytical results.
Typical Applications

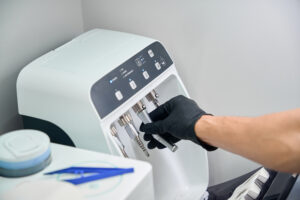

Life science equipment: The iDP valve is designed for compatibility with biological fluids, sterilization chemicals and cleaning solutions used in laboratory automation, diagnostics and sample preparation systems.

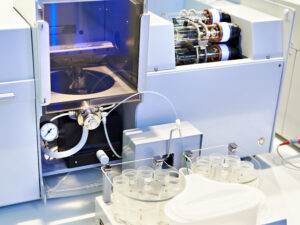

Analytical instrumentation: This valve is ideal for spectrometers, gas analyzers and laboratory analyzers where rapid media switching and contamination control are critical.
Microfluidics: The extremely low dead volume supports precise fluid handling in lab-on-chip devices and point-of-care diagnostic systems.
Clinical chemistry: Because it’s engineered for continuous automated operation with a five-million-cycle life, it’s suitable for high-throughput laboratory analyzers.
Food & beverage processing: The iDP can handle water, carbon dioxide, acidic flavorings, cleaning chemicals and sanitizing solutions while maintaining accurate flow control.
Gas handling systems: Although optimized for aggressive liquids, the 101 Series also provides reliable isolation and control of gaseous media in analytical and industrial applications.
How to Select the Right Valve for Your Application
When specifying a valve, engineers should consider:
- Media compatibility
- Operating temperature
- Pressure requirements
- Flow requirements
- Available installation space
- Required cycle life
Humphrey offers multiple body and elastomer combinations to optimize chemical resistance for specific applications.
Engineered Solutions Beyond the Catalog at Humphrey Products
Humphrey Products delivers more than standard components. Our engineering team collaborates with OEMs to develop custom valve and manifold solutions tailored to unique application requirements. From concept through production, we help customers optimize performance, reliability, and manufacturability.
Whether your application involves aggressive chemicals, biological fluids, or precision gas control, the 101 Series iDP Valve provides a compact, durable, and high-performance solution designed for today’s most demanding analytical and life science systems. Contact us for assistance.
