CSV 10mm & 12mm Miniature Pneumatic Solenoid Valves

Humphrey’s CSV 10mm and 12mm are miniature cartridge-style pneumatic solenoid valves developed for medical devices and applications that require high performance in confined spaces.

CSV 10mm & 12mm Miniature Pneumatic Solenoid Valves

Made to Adapt

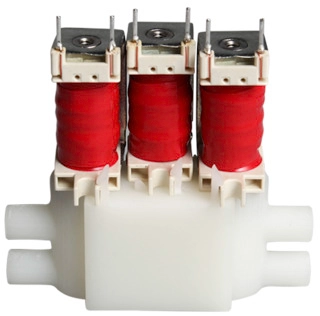

The multi-purpose CSV 10mm and 12mm are ready for integration into customized sub-bases or manifolds.

The valves feature a flexible cartridge body that can be directly integrated into your device with any compact single or multiple valve piping solution of your design or created by your Humphrey engineering team. RoHS and REACH compliant. Made in the United States.

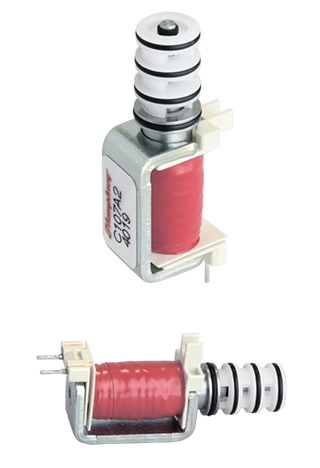

10mm Cartridge

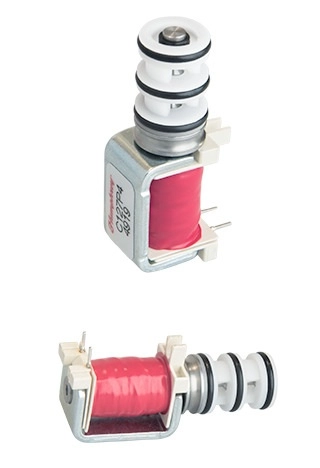

12mm Cartridge

Integration Functions

  • Two- or Three-Way connections
  • Normally Closed or Normally Open
  • Diverter
  • Selector

CSV 10 & 12mm Miniature Pneumatic Solenoid Valve Features:

  • Versatile, multi-purpose poppet construction
  • Very high-flow capacity from low-current solenoid
  • Designed for maximum porting flexibility in tight spaces
  • Fast-acting solenoid responds in 10 milliseconds
  • Lightweight materials (just 11 and 19.5 grams)
  • Quiet operation for patient comfort

To learn more about Humphrey Products’ CSV C10 and C12 valves, visit our online catalog or download the CSV 10mm or CSV 12mm technical datasheet.

Have questions? Our application and engineering staff are available to provide valve selection assistance and discuss modifications for specific applications.

Call 800-477-8707 or fill out our technical services contact form for assistance.
