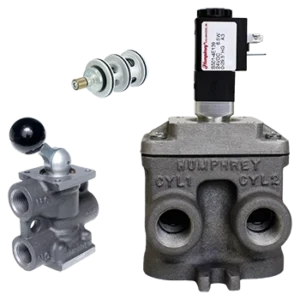

High Flow Poppet Valves

2-, 3- and 4-Way | Solenoid, Air Pilot, Detented Lever, Cartridge

The high flow Humphrey Large Poppet Valves deliver up to 275 SCFM in the most challenging industrial environments.

Rugged and dependable, and utilizing a low friction, opposing poppet construction, these 1/2 NPT valves seal tight at rest and open reliably with each cycle. The large, unrestricted 1/2” orifice opens to full flow instantaneously when actuated.

Streamlined three-way models are multipurpose and feature a variety of mounting options. Four-way models incorporate two three-way types within a single diecast body.

Select from solenoid pilot and remote air pilot models in 2-, 3- and 4-way functions, or detented lever and cartridge types in 2- and 3-way functions.

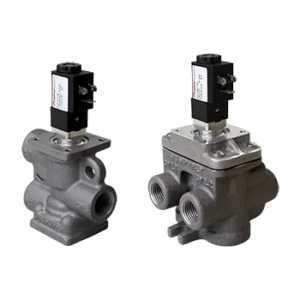

Solenoid Air Pilot

Our new and improved B Series Solenoid Operator is featured. Available normally closed or open, in 12VDC, 24VDC or 120VAC voltages and lead wire or DIN electrical entry.

Additionally, the B Series mounting and piping is completely interchangeable with the field-proven Humphrey original 501E1 and 5014E1 Series.

Remote Air Pilot

Mount these rugged work valves near the point of use and pilot them with cost effective miniature valves remotely. Our standard 501A model is high flow and multipurpose.

Exclusive “AA” models incorporate an internal compensating orifice that accelerates cycling and achieve a maintained actuated position from a momentary air pilot signal.

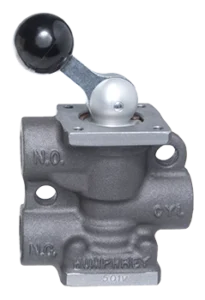

Detented Lever

This high flow, 3-port detented lever valve is perfect as an air supply shut-off to equipment or processes. Fills and dumps downstream compressed air energy quickly. Large handle with positive detent in closed and open positions.

Equipped with a variety of mounting options (panel, base, side mount). Multipurpose. Plug port for 2-way or use as diverter or selector function.

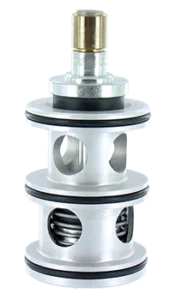

Cartridge

Insert this multipurpose, high flow capacity 3-port valve into your proprietary workpiece or equipment housing to simplify or protect air path routing and save space. Versatile.

Port valve as 2- or 3-way normally closed or open function, as diverter or selector functions.
