Product Details

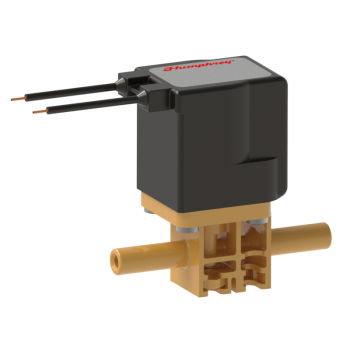

iDP 350 Series 2-port solenoid valve is ideal for control of bodily fluids, aggressive chemicals and cleaning fluids, and at elevated liquid temperatures. Made of Radel body material and choice of FFKM, FKM or EPDM diaphragm-poppet elastomers. Strong return spring seals valve tight. Coil is encapsulated and Loctite™ impregnated for wet environments. Inline or manifold mount body configurations.
| Media | Aggressive Liquids & Gases |
| Valve Function | Normally Closed |
| Voltage | 24VDC |
| Piping Type | Inline, Direct Piping |
| Electrical Entry Orientation | Standard Position |
| Port Size | 8mm Push to Connect post |
| Number of Ports | 2 ports |
| Number of Positions | 2 positions |
| Size (in) HxWxD | 2.58 x 1.21 x 1.76 |
| Type of Operation | Direct Acting Type |
| Flow - GPM water @ 40 psig | 1.4 |
| Flow - LPM water @ 40 psig | 5.3 |
| ESEOD (orifice) - in (mm) | 0.107 (2.72) |
| Flow Coefficient (Cv) | 0.171 |
| Flow Capacity @ 40psi | 5.3 LPM (Water); 220 LPM (Air) |
| Pressure Range (psi) | 0 ~ 40psi |
| Response Time per Step (ms) | 16 |
| Operating Speed (cycles/min) | 300 |
| Ambient Temperature Range (⁰C) | -20~65 |
| Fluid Temperature Range (C⁰) | -20~95 |
| Wetted Materials | Radel® body; EPDM Seals |
| Weight (oz) | 6.0 |
| Electrical Entry | 20 AWG Lead Wires; 24" Length |
| Voltage Range | +10%, -10% |
| Power Consumption (w) | 8.3 |
| Internal Volume (Unactuated) | 0.032 in³ |
| Internal Volume (Actuated) | 0.074 in³ |
