Product Details

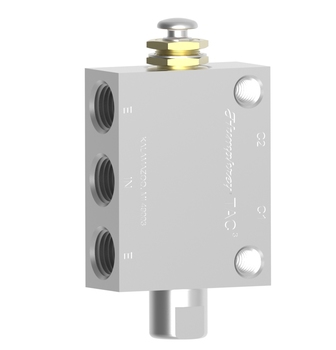

5-ported, 4-Way Air Piloted / Push Button valve, detented, with 1/4 pipe ports ports and two 1/8 pipe pilot ports. Excellent choice to operate large double acting pneumatic cylinders (up to 2" bore). All TAC Push Button valves feature work hardened SST button plungers above 15/32-32 threaded collars. Collar feature permits acceptance of a variety of TAC Air Pilot Operators (sold separately - see Related Products below). Button bottoms out on collar to prevent valve overstroke from Air Operator. Compact. Rugged.
| Media | Air |
| Valve Function | 4-way, Air Pilot One End, Push Button Other End, Detented |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/4 NPSF (Pilot Port: 1/8 NPSF) |
| Number of Ports | 5 ports |
| Number of Positions | 2 positions |
| Options Included | Panel Mounting Hardware |
| Approx Size (in) HxWxD | 3.29 x 0.75 x 1.75 |
| Type of Operation | Air Pilot / Plunger Return Detent |
| Flow - SCFM @ 100 psig | 31 |
| Flow - LPM @ 6.9 bar | 877 |
| ESEOD (orifice) - in (mm) | 0.167 (4.31) |
| Flow Coefficient (Cv) | 0.52 |
| Lubrication | Recommended |
| Pressure Range (psi) | 0-125 |
At Valved Pressure of:
Recommended Pilot Pressure (psi): | | <=30 PSI | 60 PSI | 90 PSI | 120 PSI | | 15 | 15 | 20 | 25 |
|
| Operating Speed (cycles/min) | 900 |
| Ambient Temperature Range (⁰F) | -20~180 |
| Wetted Materials | Anodized aluminum, Brass, Delrin, Buna N |
| Weight (oz) | 5.0 |
| Accepts Air Pilot Operators (sold separately) | 341A, 341AR, 341AS, 341ASR |
| Accepts Manual Operators (sold separately) | 34T |
| Accepts Mechanical Operators (sold separately): | 34B, 34C, 34CW |
