Product Details

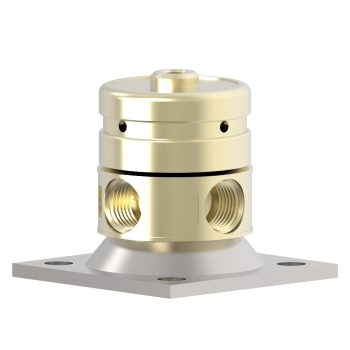

125 Series 1/8 pipe "Interface" valves are ultra-low pilot pressure bleed valves. Pilot signaling pressures as low as 0.1 PSIG effectively blocks the bleed orifice and the internal, full pressure completes the shift to the actuated position. Primary valve is classic Humphrey diaphragm poppet principle. Ideal for fluidics, proximity switching and air jet sensing.
| Media | Air |
| Valve Function | Single Pilot, Normally Closed |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/8 NPSF (Pilot: 10-32 UNF) |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Size (in) HxWxD | 1.59 x 1.19 DIA |
| Options Included | Mounting base |
| Type of Operation | Ultra Low Air Piloted |
| Flow - SCFM @ 100 psig | 17 |
| Flow - LPM @ 6.9 bar | 481 |
| ESEOD (orifice) - in (mm) | 0.113 (2.87) |
| Flow Coefficient (Cv) | 0.23 |
| Lubrication | Clean, dry air only |
| Pressure Range (psi) | 30-125 |
| Recommended Pilot Pressure (psi) | 0.07 ~ 20 (consult factory) |
| Operating Speed (cycles/min) | 1,800 |
| Ambient Temperature Range (⁰F) | 40-125 |
| Wetted Materials | Brass, Aluminum, SST, Buna N |
| Weight (oz) | 5.5 |
