Product Details

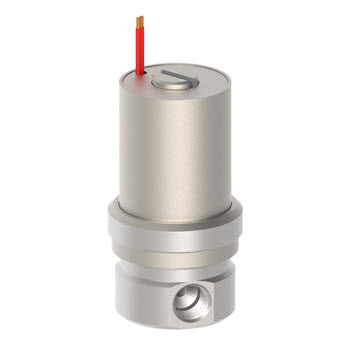

Humphrey ProControl™ PC30 proportional valve provides excellent value and versatility, and superior flow and pressure control of inert gases. Utilizing a frictionless, flat-spring armature, ProControl™ valves achieve excellent variable flow characteristics and long life in a simple, compact construction. The PC30 offers flows up to 225 SLPM from standard orifice sizes from 0.156" to 0.250" diameter. Available in 12 and 24 vdc (5.8 watt), the PC30 exhibits a response time of 5-8 msec and 10% hysteresis.
| Media | Air, Inert Gas |
| Valve Function | Single Solenoid Proportional, Normally Closed |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/4 NPSF |
| Number of Ports | 2 ports |
| Number of Positions | Variable |
| Approx Size (in) HxWxD | 3.27 x 1.82 DIA |
| Type of Operation | Direct Acting |
| Flow - SCFM @ pressure | 7.95 |
| Flow - LPM @ pressure | 225 |
| ESEOD (orifice) - in (mm) | 0.088 (2.23) |
| Flow Coefficient (Cv) | 0.114 |
| Lubrication | Not required |
| Response Time per Step (ms) | ~35 |
| Ambient Temperature Range (⁰F) | -20~200 |
| Wetted Materials | Anodized aluminum, SST, Nickel plated steel, FKM |
| Weight (oz) | 15.0 |
| Electrical Entry | 18" Lead Wires |
| Maximum Voltage | 20 volts |
| Power Consumption (w) | 5.8 |
| Maximum Flow (LPM) | 225 |
| Callibrated Pressure Setting (psi) | 100.0 |
| Input current for full flow (mA) | 285 |
| Nominal Resistance @ 72⁰F (Ohms) | 70.0 |
| Slot shaped characteristic at top of valve | Not for adjustment. Do not tamper. |
