Product Details

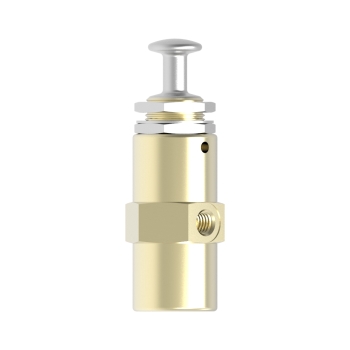

Four way miniature Push-Pull Button valve, detented, with 10-32 UNF ports. All TAC pushbutton valves feature an attractive, work hardened SST button above a 15/32-32 threaded collar. Feature permits panel mounting and bottoms out on collar to prevent valve overstroke. Compact. Rugged.
| Media | Air |
| Valve Function | 4-way, Detent |
| Piping Type | Inline, Direct Piping |
| Port Size | M5x0.8 |
| Number of Ports | 5 ports |
| Number of Positions | 2 positions |
| Options Included | 15/32-32 Thread Panel Mounting Hardware |
| Approx Size (in) HxWxD | 2.22 x 0.69 HEX |
| Type of Operation | Push / Pull button |
| Flow Coefficient (Cv) | 0.18 |
| Lubrication | Recommended |
| Pressure Range (psi) | 0-125 |
| Ambient Temperature Range (⁰F) | -20~180 |
| Wetted Materials | Brass, SST, Buna N |
| Weight (oz) | 2.5 |
