Product Details

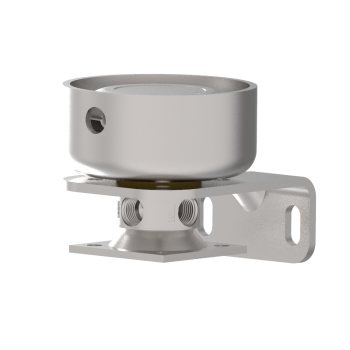

125PLG is a very light touch 1/8 pipe Pushbutton Valve specifically designed for high production manual work stations. Features reliable Humphrey diaphragm poppet technology. Button is large and guarded to prevent accidental actuation and bridging in two hand control. Mounting hardware furnished. Rugged normally closed valves can be configured 2 or 3-way.
| Media | Air |
| Valve Function | Normally closed |
| Piping Type | Inline, Direct piping |
| Port Size | 1/8 NPSF |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Options Included | Shroud, Side Mount, Base Mount, Panel Mount |
| Approx Size (in) HxWxD | 2.46 x 2.71 DIA |
| Type of Operation | Palm Button w/Guard |
| Flow - SCFM @ 100 psig | 22 |
| Flow - LPM @ 6.9 bar | 623 |
| ESEOD (orifice) - in (mm) | 0.129 (3.28) |
| Flow Coefficient (Cv) | 0.30 |
| Lubrication | Not Required |
| Pressure Range (psi) | 30-125 |
At Valved Pressure of:
Force to Actuate (lbs): | |
| Ambient Temperature Range (⁰F) | -20~225 |
| Wetted Materials | SST, Brass, Buna N |
| Weight (oz) | 24.0 |
