Product Details

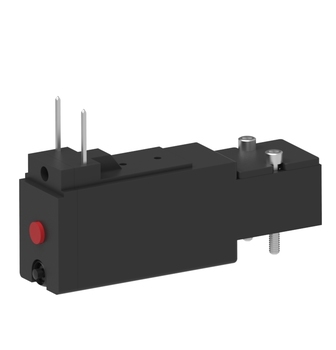

12mm wide HKL5 Series is compact, high flow and ultra reliable. Direct acting, this 3-port solenoid valve is specifcally designed for control of mild liquid fluids to 40psi. Multi-purpose. Use valve as normally closed, normally open, diverter or selector function. Plug 1 or 3 port for 2-way function. Produced to Humphrey's industry leading, stringent leakage requirements. Coil is encapsulated. Made in USA. RoHS compliant.
| Media | Air, Inert Gas, Vacuum |
| Valve Function | Single Solenoid, Multi-purpose |
| Voltage | 24VDC |
| Piping Type | Manifold, Subbase Piping |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Options Included | Flexible porting, Port cover, 2-port gasket |
| Approx Size (in) HxWxD | 1.98 x 0.5 x 0.84 |
| Type of Operation | Direct Acting Type |
| Flow - SCFM @ 100 psig | 3 |
| Flow - LPM @ 6.9 bar | 85 |
| ESEOD (orifice) - in (mm) | 0.053 (1.34) |
| Flow Coefficient (Cv) | 0.05 |
| Lubrication | Not Required |
| Pressure Range (psi) | 28"Hg~30 |
| Response Time per Step (ms) | 10/4 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 32~175 |
| Wetted Materials | Thermoset Epoxy, Peek®, SST, EPDM |
| Weight (oz) | 1.2 |
| Electrical Entry | Two 0.025" Square Pins |
| Voltage Range | +10%, -15% |
| Power Consumption (w) | 1.7 |
| Manual Override | Non-Locking |
| Compliance | RoHS |
