Product Details

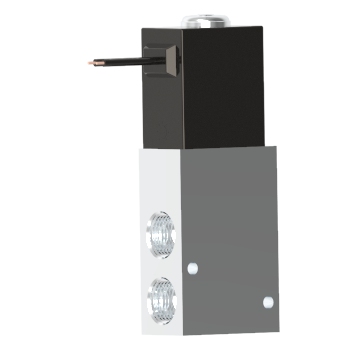

3/8 NPSF, 25mm wide 254 Balanced Valve is compact, high flow and cost effective. Direct acting, the 4-port solenoid valve can be operated through the full pressure spectrum of vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 3" bore (80mm). Consider IP67 models, suitable in moisture laden and dusty ambient environments. Also available in metric G3/8 or Rc3/8 porting. Made in USA. RoHS compliant.
| Media | Air, Inert Gas, Vacuum |
| Valve Function | Single Solenoid, Multi-purpose |
| Voltage | 120/50/60 |
| Piping Type | Inline, Direct Piping |
| Port Size | 3/8 NPSF |
| Number of Ports | 4 ports |
| Number of Positions | 2 positions |
| Coil Entry Orientation | Rotated, over Port 1 |
| Size (in) HxWxD | 4.63 x 0.98 x 1.75 |
| Type of Operation | Direct Acting Type |
| Flow - SCFM @ 100 psig | 68 |
| Flow - LPM @ 6.9 bar | 1926 |
| ESEOD (orifice) - in (mm) | 0.249 |
| Flow Coefficient (Cv) | 1.12 |
| Lubrication | Not Required |
| Pressure Range (psi) | -25"Hg-125 |
| Response Time per Step (ms) | 34/17 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 32~125 |
| Wetted Materials | Anodized Aluminum, Brass, SST, Buna N |
| Weight (oz) | 13.0 |
| Electrical Entry | 24" Lead Wires |
| Voltage Range | +/-10% |
| Power Consumption (w) | 9.8 |
| Manual Override | Non-Locking |
| Compliance | RoHS |
