Product Details

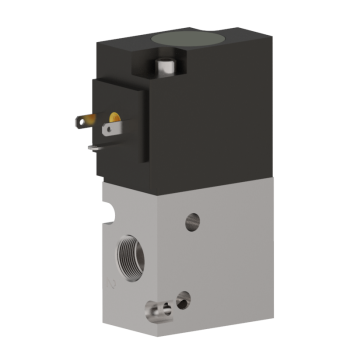

Latching Solenoid Valve. An electrical pulse shifts valve. Valve remains shifted until a second pulse in reverse polarity returns valve to original state. 1/8 NPSF, 19mm wide L310 Series is compact, high flow and low cost. Direct acting, this 3-port solenoid valve can operate reliably from vacuum to 80psi. Multi-purpose. Pipe valve as normally closed or normally open. Consult factory for diverter or selector function. Plug 1 or 3 port for 2-way function. Coil is encapsulated. Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS compliant.
| Media | Air, Inert Gas, Vacuum |
| Valve Function | Latching Solenoid |
| Voltage | 12VDC |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/8 NPSF |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Coil Entry Orientation | Standard, over port 2 |
| Size (in) HxWxD | 2.38 x 0.75 x 1.25 |
| Type of Operation | Direct Acting Latching Solenoid Type |
| Flow - SCFM @ 100 psig | 12 |
| Flow - LPM @ 6.9 bar | 339 |
| ESEOD (orifice) - in (mm) | 0.1 (2.54) |
| Flow Coefficient (Cv) | 0.18 |
| Lubrication | Not Required |
| Pressure Range (psi) | -28"Hg-125 |
| Response Time - ON/OFF (ms) | 100 |
| Maximum Duty Cycle | 15% |
| Ambient Temperature Range (⁰F) | 32~125 |
| Wetted Materials | Anodized Aluminum, Brass, SST, Buna N |
| Weight (oz) | 4.0 |
| Electrical Entry | DIN style, Micro Type C (9.4mm) |
| Voltage Range | +/-10% |
| Power Consumption (w) | 12 (during pulse) |
| Manual Override | No Override |
| Compliance | RoHS |
