Product Details

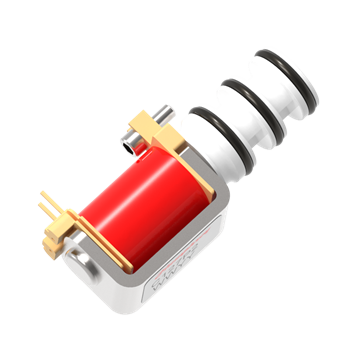

Humphrey’s C12 Series are high flow, miniature cartridge-style pneumatic solenoid valves developed for medical devices and applications that require high performance in confined spaces.These 12mm wide multi-purpose valves are ready for integration into customized sub-bases or manifolds. They feature a flexible body that can be integrated into a valve piping solution of your design, or created by our Humphrey engineering team. RoHS and REACH compliant. Made in the United States.
| Media | Air, Inert Gas, Vacuum |
| Valve Function | Single Solenoid, Multi-purpose |
| Voltage | 12VDC |
| Piping Type | Cartridge, Insert Piping |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Options Included | Flexible porting; 2-port function |
| Approx Size (in) HxWxD | 1.7 x 0.5 x .8 |
| Type of Operation | Direct Acting Type |
| Flow - LPM @ 2.06 bar | 125 |
| Flow - SCFM @ 30 psig | 4.14 |
| ESEOD (orifice) - in (mm) | 0.105 (2.68) |
| Flow Coefficient (Cv) | 0.2 |
| Lubrication | Not Required |
| Pressure Range (psi) | 28"Hg - 30 psi |
| Response Time per Step (ms) | 9/5 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 32~125 |
| Wetted Materials | Acetal, LCP, SST, NBR |
| Weight (oz) | 0.4 |
| Electrical Entry | Perpendicular Plug-In Receptacle w/30cm lead wires |
| Voltage Range | ±10% |
| Power Consumption (w) | 5 |
| Compliance | RoHS |
