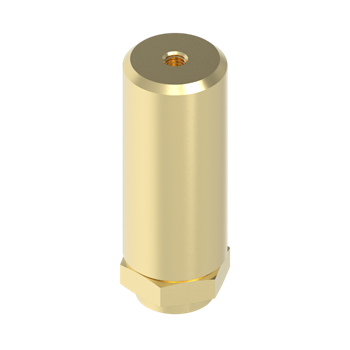

TAC Miniature Push Button Valve Operators
Model: 34AS
| Request A Quote | Enter Quantity |
Product Details
| Approx Size (in) HxWxD | 2.34 x 0.81 HEX |
| Pilot Pressure Range (psi) | 40-65 for optimum life |
| Operator Function | Operation delayed until pilot pressure builds to 35 +/- 5 psi. |
| Type of TAC Operator | Snap Action Air Pilot Operator |
| Air Operator for 2 or 3 Way TAC Valve Models - sold separately: | 3P, 2P |
| Air Operator for 4 Way TAC Valve Models - sold separately: | 4P, 4PP |
| Snap Action Pressure Set (psi) | 35 +/-5 |
| Mounting Method to Push Button Valve: | Threads to valve collar using 15/32-32 threads. |
| Materials | Brass, FKM |
| Documentation | |
| Product Catalog Pages | Introduction to the TAC Product Line.... |
| Product Catalog Pages | Specs_Air Operators for Pushbutton Va... |
| Product Catalog Pages | Specs_Pushbutton Valves.pdf |
| Product Catalog Pages | Specs_TAC Brackets & Adaptors.pdf |
