Product Details

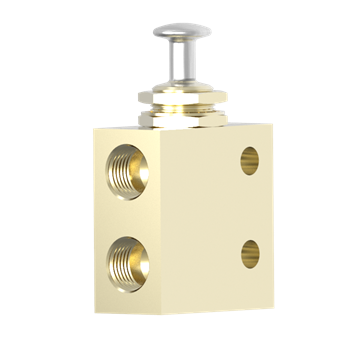

Three way miniature push-pull button valve, detented, with 1/8 pipe ports. All TAC pushbutton valves feature an attractive, work hardened SST button above a 15/32-32 threaded collar. Feature permits panel mounting and bottoms out on collar to prevent valve overstroke. Compact. Rugged.
| Media | Air |
| Valve Function | 3-Way, Normally Closed |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/8 NPSF |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Options Included | 15/32-32 Thread Panel Mounting Hardware |
| Approx Size (in) HxWxD | 2.15 x 0.63 x 1.25 |
| Type of Operation | Push Pull button |
| Flow - SCFM @ 100 psig | 22.5 |
| Flow - LPM @ 6.9 bar | 637 |
| ESEOD (orifice) - in (mm) | 0.145 (3.69) |
| Flow Coefficient (Cv) | 0.38 |
| Lubrication | Recommended |
| Pressure Range (psi) | 0-125 |
| Ambient Temperature Range (⁰F) | -20~180 |
| Wetted Materials | Brass, SST, Buna N |
| Weight (oz) | 4.3 |
