Product Details

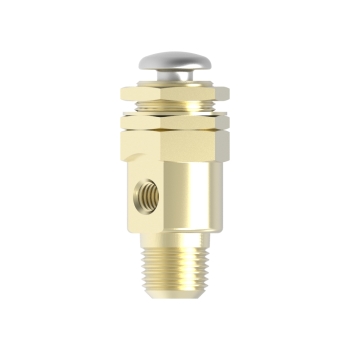

Two way miniature Push Button valve, normally closed, spring return with 10-32 UNF ports. All TAC Push Button valves feature an attractive, work hardened SST button above a 15/32-32 threaded collar. Feature permits panel mounting or acceptance of a variety of TAC Miniature Operators. Button bottoms out on collar to prevent valve overstroke. Compact. Rugged.
| Media | Air |
| Valve Function | 2-way, Spring Return |
| Piping Type | Inline, Direct Piping |
| Port Size | M5x0.8 |
| Number of Ports | 2 ports |
| Number of Positions | 2 positions |
| Options Included | Hardened Button for Manual or Mechanical use, Panel Mounting Hardware |
| Approx Size (in) HxWxD | 1.45 x 0.56 HEX |
| Type of Operation | Push button |
| Flow - SCFM @ 100 psig | 7.5 |
| Flow - LPM @ 6.9 bar | 212 |
| ESEOD (orifice) - in (mm) | 0.0845 (2.16) |
| Flow Coefficient (Cv) | 0.13 |
| Lubrication | Not required |
| Pressure Range (psi) | 0-125 |
At Valved Pressure of:
Force to Actuate (lbs): | |
| Operating Speed (cycles/min) | 900 |
| Ambient Temperature Range (⁰F) | -20~180 |
| Wetted Materials | Brass, SST, Buna N |
| Weight (oz) | 1.3 |
| Accepts Air Pilot Operators (sold separately) | 34A, 34AR, 34AS, 34ASR |
| Accepts Manual Operators (sold separately) | 34F, 34T |
| Accepts Mechanical Operators (sold separately): | 34B, 34C, 34CW, 34CH |
