Product Details

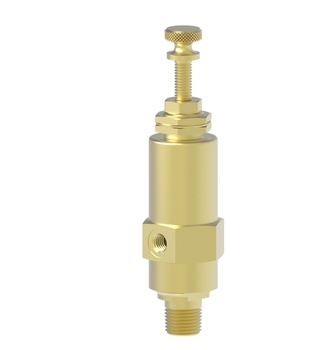

Miniature Pressure Regulator. Humphrey RSR is compact, with high flow capacity of 22 CFM at 100 psi. Regulates downstream pressure anywhere from 0 to 125psi with a maximum supply pressure of 150psi. Panel mount using 15/32-32 threads or hard mount to manifold with 1/8 pipe supply port. Dual outlet ports for function and gage. Brass construction.
| Description | Relieving Type, Pressure Regulator |
| Media | Air, Inert Gas |
| Valve Function | MiniaturePressure Regulator |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/8 NPT Male, 10-32 UNF Female |
| Number of Ports | 3 ports |
| Approx Size (in) HxWxD | 3.38 x 0.81 HEX |
| Type of Operation | Relieving |
| Flow Coefficient (Cv) | 0.18 |
| Ambient Temperature Range (⁰F) | 20~150 |
| Wetted Materials | Brass, Buna N |
| Weight (oz) | 3.3 |
| Inlet Pressure Range | 0-150 psi |
| Control Pressure Range | 1-125 psi |
