Product Details

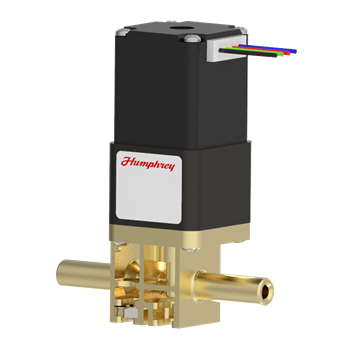

MiDP S390 Series 2-port Stepper Operated Proportional Valve is ideal for precise control of bodily fluids, aggressive chemicals and cleaning fluids. The stepper motor design allows for precision variable flow control, excellent repeatability and the ability to hold a flow value with no/minimal power consumption. This new design utilizes the same industry leading media isolation of the field proven iDP 350 Series. The Radel™ body material and choice of FFKM, FKM or EPDM diaphragm-poppet elastomers allow for aggressive media use at elevated temperatures. Diaphragm-isolated design will not compromise performance or stepper motor. MiDP is also available in S391 manifold / subbase mount body configuration.
| Media | Aggressive Liquids & Gases |
| Valve Function | Stepper Motor Operated Proportional |
| Voltage | 12VDC or 24VDC |
| Piping Type | Inline, Direct Piping |
| Electrical Entry Orientation | Standard Position |
| Port Size | Barb for 5/16" ID Tube |
| Number of Ports | 2 ports |
| Number of Positions | Variable |
| Size (in) HxWxD | 3.3 x 1.20 x 1.21 |
| Type of Operation | Direct Acting Type |
| Typical Flow Capacity @ Factory Set Pressure | 8.5 LPM (Water); 325 LPM (Air) |
| Pressure Range (psi) | 0 ~ 60psi |
| Response Time per Step (ms) | 40 |
| Ambient Temperature Range (⁰C) | 0~50 |
| Fluid Temperature Range (C⁰) | 0~95 |
| Wetted Materials | Radel® body; Perfluoroelastomer Seals |
| Weight (oz) | 6.0 |
| Initialize (set) Current (Typ) | 350 mA |
| Hold Current (Max) | 100 mA |
| Recommended Move Current (Typ) | 600 mA |
| Electrical Entry | 12" Lead Wires |
| Voltage Range | +10%, -10% |
| Compliance | RoHS |
| Internal Volume (Unactuated) | 0.026 in³ |
| Internal Volume (Actuated) | 0.062 in³ |
| Callibrated Pressure Setting (psi) | 60.0 |
| Nominal Resistance @ 72⁰F (Ohms) | 5.6 |
| Maximum Power Consumption (w) | 2.6 |
