Product Details

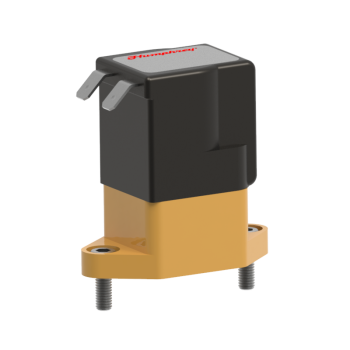

iDP 370 Series 3-port solenoid valve is ideal for diverting control of bodily fluids, aggressive chemicals and cleaning fluids, and at elevated liquid temperatures. Made of Radel or Ultem body material and choice of FKM or EPDM diaphragm-poppet elastomers. Strong return spring seals valve tight. Coil is encapsulated and loctite™ for wet environments. Inline or manifold mount body configurations.
| Media | Aggressive Liquids & Gases |
| Valve Function | Diverter |
| Voltage | 24VDC |
| Piping Type | Manifold, Subbase Piping |
| Electrical Entry Orientation | Standard Position |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Size (in) HxWxD | 2.37 x 1.21 x 2 |
| Type of Operation | Direct Acting Type |
| Flow - GPM water @ 40 psig | 1.4 |
| Flow - LPM water @ 40 psig | 5.3 |
| ESEOD (orifice) - in (mm) | 0.107 |
| Flow Coefficient (Cv) | 0.171 |
| Flow Capacity @ 40psi | 5.3 LPM (Water); 220 LPM (Air) |
| Pressure Range (psi) | IN to COMMON: Vacuum ~ 40psi; IN to NC(or NO): Vacuum ~ 20psi |
| Response Time per Step (ms) | 20 |
| Operating Speed (cycles/min) | 300 |
| Ambient Temperature Range (⁰C) | -20~65 |
| Fluid Temperature Range (C⁰) | -20~95 |
| Wetted Materials | Radel® body; EPDM Seals |
| Weight (oz) | 7.0 |
| Electrical Entry | 1/4 inch Spade Terminal |
| Voltage Range | +10%, -10% |
| Power Consumption (w) | 8.3 |
| COM-NO Internal Volume (Unactuated) | 0.035 in³ |
| COM-NC Internal Volume (Actuated) | 0.077 in³ |
