Product Details

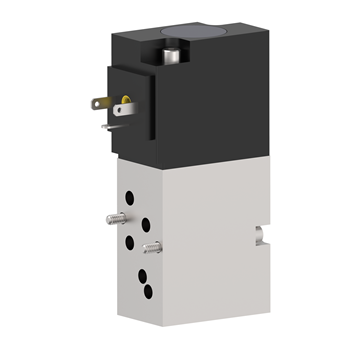

1/8 NPSF, 19mm wide 410 Series is compact, high flow and low cost. Direct acting, the 4-port solenoid valve can operate reliably from vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 1-1/4" bore (32mm). Consider optional exhaust flow control (code 70). Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS compliant.
| Media | Air, Inert Gas, Vacuum |
| Valve Function | 4-way Single Solenoid, Multi-purpose |
| Voltage | 120/50/60 |
| Piping Type | Inline, Direct Piping |
| Number of Ports | 4 ports |
| Number of Positions | 2 positions |
| Coil Entry Orientation | Standard |
| Size (in) HxWxD | 2.75 x 0.75 x 1.25 |
| Type of Operation | Direct Acting Type |
| Flow - SCFM @ 100 psig | 10 |
| Flow - LPM @ 6.9 bar | 283 |
| ESEOD (orifice) - in (mm) | 0.088 (2.34) |
| Flow Coefficient (Cv) | 0.14 |
| Lubrication | Not Required |
| Pressure Range (psi) | -28"Hg-125 |
| Response Time per Step (ms) | 12/20 |
| Maximum Duty Cycle | 600 CPM |
| Ambient Temperature Range (⁰F) | 32~125 |
| Wetted Materials | Anodized Aluminum, Brass, SST, FKM, Acetal |
| Weight (oz) | 4.0 |
| Electrical Entry | DIN style, Micro Type C (9.4mm) |
| Voltage Range | +10%, -15% |
| Power Consumption (w) | 4.5 |
| Manual Override | Non-Locking |
| Compliance | RoHS |
