Product Details

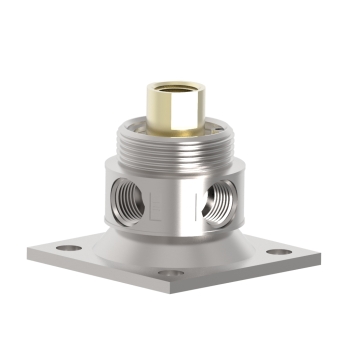

125AA Series 1/8 pipe Air Pilot Valve features the classic Humphrey diaphragm-poppet principle, while incorporating an internal compensating orifice to achieve faster response times, or a "momentary signal, maintained position" function. The unbalanced, air-spring return design assures reliable shifting and bubble-tight sealing actuated, or unactuated. Compact design permits close proximity mounting to work. These rugged normally closed air valves are available in 2 or 3- way function.
| Media | Air |
| Valve Function | Single Pilot, Normally Closed |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/8 NPSF |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Size (in) HxWxD | 1.5 x 1.19 DIA |
| Options Included | Internal compensating orifice, Mounting base |
| Type of Operation | Air Piloted, w/Bleed |
| Flow - SCFM @ 100 psig | 22 |
| Flow - LPM @ 6.9 bar | 623 |
| ESEOD (orifice) - in (mm) | 0.129 (3.28) |
| Flow Coefficient (Cv) | 0.30 |
| Lubrication | Not required |
| Pressure Range (psi) | 10-125 |
At Valved Pressure of:
Recommended Pilot Pressure (psi): | | <=30 PSI | 60 PSI | 90 PSI | 120 PSI | | 25 | 35 | 49 | 63 |
|
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 0-225 |
| Wetted Materials | Zinc plated steel, Brass, Buna N |
| Weight (oz) | 5.5 |
