Product Details

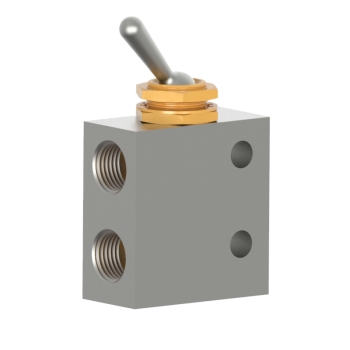

Three way miniature toggle valve, detented, with 1/8 pipe ports. TAC toggle valves feature an attractive lever above a 15/32-32 threaded collar. Feature permits easy panel mounting. Toggle design prevents valve overstroke. Compact. Rugged.
| Media | Air |
| Valve Function | 3-Way, Normally Closed |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/8 NPSF |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Options Included | 15/32-32 Threaded Panel Mounting Hardware |
| Approx Size (in) HxWxD | 2.22 x 0.63 x 1.25 |
| Type of Operation | Toggle |
| Flow - SCFM @ 100 psig | 22.5 |
| Flow - LPM @ 6.9 bar | 637 |
| ESEOD (orifice) - in (mm) | 0.1452 (3.69) |
| Flow Coefficient (Cv) | 0.38 |
| Lubrication | Recommended |
| Pressure Range (psi) | 0-125 |
| Ambient Temperature Range (⁰F) | 0~400 |
| Wetted Materials | Aluminum, Brass, SST, FKM |
| Weight (oz) | 4.3 |
