Product Details

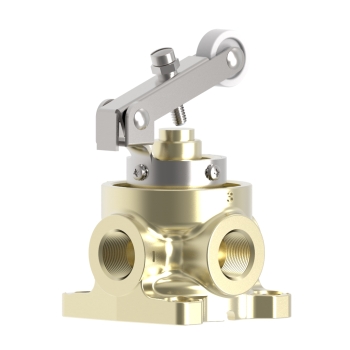

V500C Series 1/2 pipe Roller Cam type mechanical vacuum valve features the classic Humphrey diaphragm poppet principle. The unbalanced design assures bubble-tight sealing actuated, and unactuated. Rugged 2 or 3-way valves are available normally closed. Standard brass body suitable for inline or base mounting.
| Media | Vacuum |
| Valve Function | Normally closed |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/2 NPT |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Approx Size (in) HxWxD | 4.95 x 3 x 2.94 |
| Type of Operation | Roller cam |
| Flow - SCFM @ pressure | 160 |
| Flow - LPM @ pressure | 4539 |
| ESEOD (orifice) - in (mm) | 0.385 (9.78) |
| Flow Coefficient (Cv) | 2.67 |
| Lubrication | Not required |
| Pressure Range (psi) | 0-29.5"Hg |
| Ambient Temperature Range (⁰F) | 0~400 |
| Wetted Materials | Brass, SST, FKM |
| Weight (oz) | 50.0 |
