Product Details

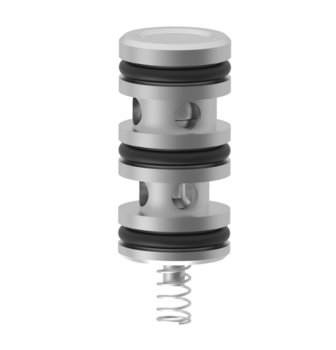

The Y125IN Series Poppet 3-Way Insert Valve achieves high flow from a compact body. Normally closed or open, this 1/8 orifice, plunger operated valve fits in. This compact insert / cartridge valve type drops into your manifold cavity, eliminating fittings and tubing.
| Media | Air |
| Valve Function | Multi-purpose |
| Piping Type | Cartridge, Insert Piping |
| Port Size | 1/8 ORIFICE |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Approx Size (in) HxWxD | 1.2 x 0.5 DIA |
| Type of Operation | Plunger, Air Pilot |
| Flow - SCFM @ 100 psig | 22 |
| Flow - LPM @ 6.9 bar | 622 |
| ESEOD (orifice) - in (mm) | 0.118 (2.99) |
| Flow Coefficient (Cv) | 0.25 |
| Lubrication | Not required |
| Pressure Range (psi) | 0-125 |
At Valved Pressure of:
Recommended Pilot Pressure (psi): | | <=30 PSI | 60 PSI | 90 PSI | 120 PSI | | 45 | 70 | 95 | 120 |
|
At Valved Pressure of:
Force to Actuate (lbs): | |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | -10~225 |
| Wetted Materials | Anodized aluminum, Buna N |
| Weight (oz) | 0.3 |
