Product Details

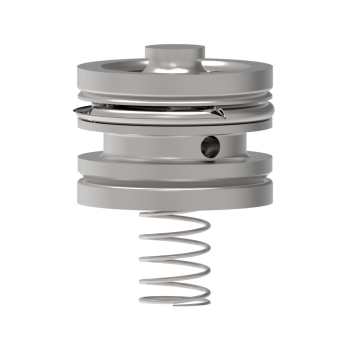

125INS Series 1/8 orifice Plunger-type Insert Valve features the classic Humphrey diaphragm poppet principle. The unbalanced, air-spring return design assures bubble-tight sealing actuated, and unactuated. Rugged 2 or 3-way valves are normally closed. Our compact insert / cartridge valve type drops into your manifold cavity, eliminating fittings and tubing.
| Media | Air, Inert Gas |
| Valve Function | Normally Closed |
| Piping Type | Cartridge, Manifold Piping |
| Port Size | 1/8 ORIFICE |
| Number of Ports | 2 ports |
| Number of Positions | 2 positions |
| Approx Size (in) HxWxD | 0.69 x 0.82 DIA |
| Type of Operation | Plunger |
| Flow - SCFM @ pressure | 22 |
| Flow - LPM @ pressure | 623 |
| ESEOD (orifice) - in (mm) | 0.129 (3.28) |
| Flow Coefficient (Cv) | 0.30 |
| Lubrication | Not required |
| Pressure Range (psi) | 0-125 |
At Valved Pressure of:
Force to Actuate (lbs): | |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 0~400 |
| Wetted Materials | Zinc plated steel, FKM, Anodized aluminum |
| Weight (oz) | 0.5 |
