Product Details

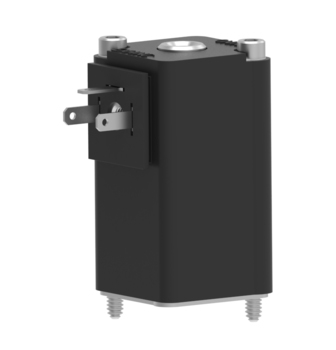

Direct acting, 3-port Mini-Mizer solenoid valve consumes only 1/2 watt power consumption. Perfect as a pneumatic interface to PC/PLC control. Produced to Humphrey's industry leading, stringent leakage requirements. Available as stand alone inline, or as manifold mount, with lead wire, DIN or spade electrical entry.
| Media | Air, Inert Gas |
| Valve Function | Single Solenoid, Normally Closed |
| Voltage | 12VDC |
| Piping Type | Manifold, Subbase Piping |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Approx Size (in) HxWxD | 1.63 x 0.88 x 0.88 |
| Type of Operation | Direct Acting Type |
| Flow - SCFM @ 100 psig | 1 |
| Flow - LPM @ 6.9 bar | 28 |
| ESEOD (orifice) - in (mm) | 0.023 (0.597) |
| Flow Coefficient (Cv) | 0.01 |
| Lubrication | Not Required |
| Pressure Range (psi) | 0-100 |
| Response Time per Step (ms) | 5/6 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 0~150 |
| Wetted Materials | SST, Nickel plated steel, Brass, Buna N |
| Weight (oz) | 2.0 |
| Electrical Entry | DIN style, Micro Type C (9.4mm) |
| Voltage Range | +10%, -15% |
| Power Consumption (w) | 0.5 |
| Compliance | RoHS |
