Product Details

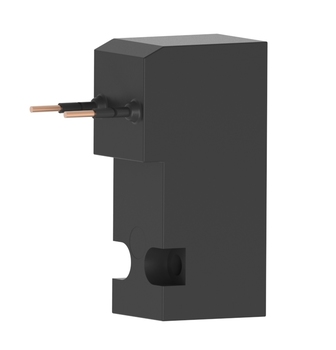

Humphrey A15 Series 15mm Pilot Valve is perfect for equipment or device makers requiring electrically controlled pneumatic signals. Available in normally closed or normally open configurations with lead wires or Mini-DIN electrical entry in 12VDC or 24VDC. The life expectancy is 50 million cycles. Manual override is standard. RoHS compliant.
| Media | Air, Inert Gas |
| Valve Function | 15mm Single Solenoid Pilot, Normally Open |
| Voltage | 24VDC |
| Piping Type | Manifold, Subbase Piping |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Options Included | Manifold mtg screws and gasket included. For 2-way, omit manifold's PORT 3. |
| Approx Size (in) HxWxD | 1.65 x 0.6 x 0.85 |
| Type of Operation | Direct Acting Type |
| Flow - SCFM @ 100 psig | 21 |
| Flow - LPM @ 6.9 bar | 594 |
| ESEOD (orifice) - in (mm) | 0.053 (1.34) |
| Flow Coefficient (Cv) | 0.05 |
| Lubrication | Not Required |
| Pressure Range (psi) | 0-100 |
| Response Time per Step (ms) | 15/15 |
| Operating Speed (cycles/min) | 2,400 |
| Ambient Temperature Range (⁰F) | 14~122 |
| Wetted Materials | Glass filled nylon, PPS, FKM, SST |
| Weight (oz) | 1.3 |
| Electrical Entry | 19" lead wires |
| Voltage Range | +/-10% |
| Power Consumption (w) | 2.5 |
| Manual Override | Non-Locking |
| Compliance | RoHS |
