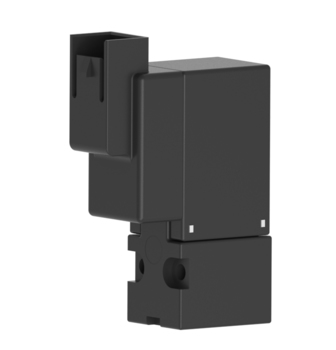

Humphrey A10 Series 10mm Pilot Valve is perfect for equipment or device makers requiring electrically controlled pneumatic signals. Available in axial or perpendicular plug-in style electrical entry in 16VDC or 24VDC. These sub-base mount, direct acting valves have a life expectancy up to 50 million cycles. Manual override is standard. RoHs compliant.
| Media | Air, Inert Gas |
| Valve Function | 10mm Single Solenoid Pilot, Normally Closed |
| Voltage | 12VDC |
| Piping Type | Manifold, Subbase Piping |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Options Included | Manifold mtg screws and gasket included. For 2-way, omit manifold's PORT 3. |
| Approx Size (in) HxWxD | 1.12 x 0.39 x 0.84 |
| Type of Operation | Direct Acting Type |
| Flow - SCFM @ 100 psig | 14 |
| Flow - LPM @ 6.9 bar | 396 |
| ESEOD (orifice) - in (mm) | 0.024 (0.59) |
| Flow Coefficient (Cv) | 0.01 |
| Lubrication | Not Required |
| Pressure Range (psi) | 0-100 |
| Response Time per Step (ms) | 10/10 |
| Operating Speed (cycles/min) | 2,400 |
| Ambient Temperature Range (⁰F) | 14~122 |
| Wetted Materials | PBT, PET, HNBR, SST |
| Weight (oz) | 0.3 |
| Electrical Entry | Axial Plug-In w/16" lead wires |
| Voltage Range | +/-10% |
| Power Consumption (w) | 1.0 |
| Manual Override | Non-Locking |
| Compliance | RoHS |
