Product Details

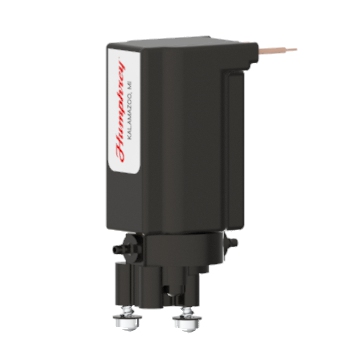

iDP 300 Series solenoid valve is ideal for miniature control of bodily fluids, aggressive chemicals and cleaning fluids, and at elevated liquid temperatures. Made of PEEK body material and choice of FKM or EPDM diaphragms. Available in three valve configurations; as 2 port inline or manifold mount, or as a 3 port diverter. Inline models include PEEK barbed fittings in a variety of sizes. Low power solenoid offered with lead wire or plug-in electrical entry.
| Media | Aggressive Liquids & Gases |
| Valve Function | Normally Closed |
| Voltage | 12VDC |
| Piping Type | Inline, Direct Piping |
| Port Size | Barb for 3/32" ID Tube |
| Number of Ports | 2 ports |
| Number of Positions | 2 positions |
| Size (in) HxWxD | 2.29 x 0.83 x 1.14 |
| Type of Operation | Direct Acting Type |
| Flow - GPM water @ 40 psig | 0.383 |
| Flow - LPM water @ 40 psig | 1.45 |
| ESEOD (orifice) - in (mm) | 0.05 (1.4) |
| Flow Coefficient (Cv) | 0.047 |
| Flow Capacity @ 40psi | 1.45 LPM (Water); 50 LPM (Air) |
| Pressure Range (psi) | Vacuum ~ 40psi |
| Response Time per Step (ms) | 25 |
| Operating Speed (cycles/min) | 300 |
| Ambient Temperature Range (⁰C) | -20~65 |
| Fluid Temperature Range (C⁰) | -20~95 |
| Wetted Materials | PEEK body; EPDM Seals |
| Weight (oz) | 3.5 |
| Electrical Entry | 22 AWG Lead Wires - 24" length |
| Voltage Range | +10%, -10% |
| Power Consumption (w) | 3.5 |
| Internal Volume (Actuated) | 0.014 cubic inches |
| Type | 1 |
