Product Details

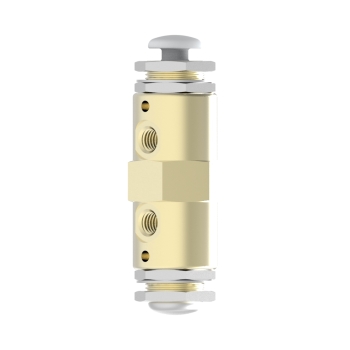

Four way miniature double Push Button valve, detented with 10-32 UNF ports. All TAC Push Button valves feature work hardened SST button plungers above 15/32-32 threaded collars. Feature permits panel mounting or acceptance of a variety of TAC Mechanical Operators (sold separately - see Related Products below). Button is rounded for minor "off center" hits and bottoms out on collar to prevent valve overstroke. Compact. Rugged.
| Media | Air |
| Valve Function | 4-way, Detent |
| Piping Type | Inline, Direct Piping |
| Port Size | 10-32 UNF |
| Number of Ports | 5 ports |
| Number of Positions | 2 positions |
| Options Included | Hardened Button for Manual or Mechanical use, Panel Mounting Hardware |
| Approx Size (in) HxWxD | 2.25 x 0.69 HEX |
| Type of Operation | Push button |
| Flow Coefficient (Cv) | 0.18 |
| Lubrication | Recommended |
| Pressure Range (psi) | 0-125 |
At Valved Pressure of:
Force to Actuate (lbs): | |
| Operating Speed (cycles/min) | 900 |
| Ambient Temperature Range (⁰F) | -20~180 |
| Wetted Materials | Brass, SST, FKM |
| Weight (oz) | 3.0 |
| Accepts Air Pilot Operators (sold separately) | 34A, 34AR, 34AS, 34ASR |
| Accepts Manual Operators (sold separately) | 34F, 34T |
| Accepts Mechanical Operators (sold separately): | 34B, 34C, 34CW, 34CH |
