Product Details

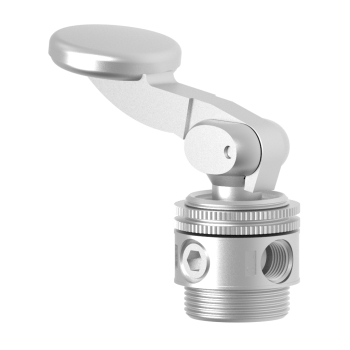

V125T Series 1/8 pipe Fingertip Lever Vacuum Valves feature the classic Humphrey diaphragm poppet principle. The unbalanced design assures bubble-tight sealing at rest and actuated. Rugged 2- or 3- way valves are available in vacuum as normally closed. Standard or optional brass body suitable for inline, base or panel mounting. Large Fingertip lever can be rotated for positioning.
| Media | Vacuum |
| Valve Function | Normally closed |
| Piping Type | Inline, Direct piping |
| Port Size | 1/8 NPSF |
| Number of Ports | 2 ports |
| Number of Positions | 2 positions |
| Options Included | Panel mount |
| Approx Size (in) HxWxD | 2.52 x 1.18 DIA |
| Type of Operation | Finger Tip/ Knee |
| Flow - SCFM @ 100 psig | 22 |
| Flow - LPM @ 6.9 bar | 623 |
| ESEOD (orifice) - in (mm) | 0.129 (3.28) |
| Flow Coefficient (Cv) | 0.30 |
| Pressure Range (psi) | 0-29.5"Hg |
At Valved Pressure of:
Force to Actuate (lbs): | |
| Ambient Temperature Range (⁰F) | 0~225 |
| Wetted Materials | Zinc plated steel, Brass, Buna N |
| Weight (oz) | 11.0 |
