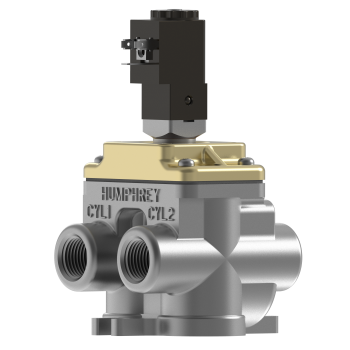

The 1/2 pipe, 1/2 inch orifice B5014E1 Series Directional Control Pneumatic Solenoid Valve achieves high flow from a compact body. This piston-poppet, 4-ported, 4-way valve is rugged, reliable controlling 30-125psi compressed air. Excellent choice to operate large double acting air cylinders (up to 8" bore) especially in poor media, difficult environments. Select plug-in or lead wire electrical entry and either 12VDC, 24VDC or 120VAC voltage. Mounting lugs are standard.
| Media | Air |
| Valve Function | Single Solenoid, Spring Return |
| Voltage | 12VDC |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/2 NPT |
| Number of Ports | 4 ports |
| Number of Positions | 2 positions |
| Size (in) HxWxD | 6.05 x 3.25 x 3.75 |
| Type of Operation | Internal Pilot Type |
| Flow - SCFM @ 100 psig | 170 |
| Flow - LPM @ 6.9 bar | 4813 |
| ESEOD (orifice) - in (mm) | 0.397 (10.07) |
| Flow Coefficient (Cv) | 2.83 |
| Lubrication | Recommended |
| Pressure Range (psi) | 30-125 (2-8.5) |
| Response Time - ON/OFF (ms) | 40/40 |
| Operating Speed (cycles/min) | 360 |
| Ambient Temperature Range (⁰F) | -30~125 |
| Wetted Materials | Aluminum, SST, Buna N |
| Weight (oz) | 46.0 |
| Electrical Entry | 10mm - DIN/B |
| Voltage Range | +/-10% |
| Power Consumption (w) | 6.5 |
