Product Details

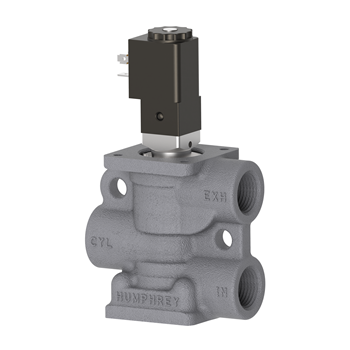

The 1/2 pipe, 1/2 inch orifice B501E1 Series piston-poppet pneumatic solenoid valve achieves ultra high flow from a compact body. Operates from 30-125psi compressed air. Select normally closed or normally open function, plug-in or lead wire electrical entry and either 12VDC, 24VDC or 120VAC voltage. Optional fluorocarbon poppets (buna standard). Multiple mounting options. Plug exhaust port for excellent 2-way function. Mounting base and pipe plug sold separately.
| Media | Air |
| Valve Function | Single Solenoid, Normally Open |
| Voltage | 120/50/60 |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/2 NPT |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Size (in) HxWxD | 5.72 x 2 x 3.37 |
| Type of Operation | Internal Pilot Type |
| Flow - SCFM @ 100 psig | 220 |
| Flow - LPM @ 6.9 bar | 6229 |
| ESEOD (orifice) - in (mm) | 0.452 (11.47) |
| Flow Coefficient (Cv) | 3.67 |
| Lubrication | Recommended |
| Pressure Range (psi) | 30-100 (2-7) |
| Response Time - ON/OFF (ms) | 13/40 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | -30~125 |
| Wetted Materials | Aluminum, SST, Buna N |
| Weight (oz) | 32.0 |
| Electrical Entry | 10mm - DIN/B |
| Voltage Range | +/-10% |
| Power Consumption (w) | 8.5 |
