Product Details

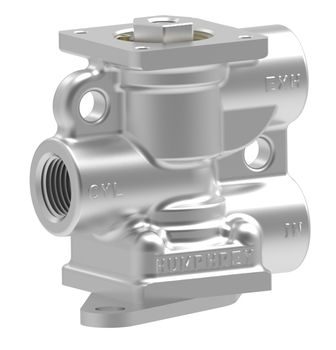

The 1/2 pipe, 501 Series piston-poppet air piloted valve achieves high flow from a compact body. Select 2 or 3-way. 3-way models are multi-purpose. Multiple mounting options.
| Media | Air, Inert Gas |
| Valve Function | Single Pilot, Multi-purpose |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/2 NPT (Pilot Port: 1/8 NPSF) |
| Number of Ports | 2 ports |
| Number of Positions | 2 positions |
| Size (in) HxWxD | 3.4 x 2 x 3.4 |
| Options Included | Mounting base |
| Type of Operation | Air Piloted |
| Flow - SCFM @ 100 psig | 220 |
| Flow - LPM @ 6.9 bar | 6229 |
| ESEOD (orifice) - in (mm) | 0.452 (11.47) |
| Flow Coefficient (Cv) | 3.67 |
| Lubrication | Recommended |
| Pressure Range (psi) | 0-125 |
At Valved Pressure of:
Recommended Pilot Pressure (psi): | | <=30 PSI | 60 PSI | 90 PSI | 120 PSI | | 29 | 52 | 72 | 92 |
|
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | -30~225 |
| Wetted Materials | Aluminum, SST, Buna N |
| Weight (oz) | 19.0 |
