Product Details

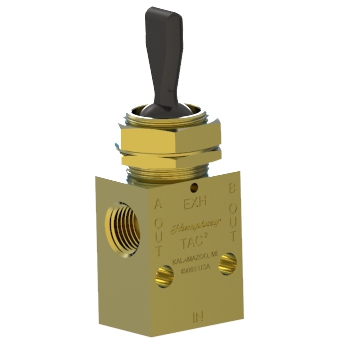

Three position, four way miniature toggle valve, detented, with 1/8 pipe ports. TAC three position toggle valves feature a lever above a 5/8-32 threaded collar. Feature permits easy panel mounting. Toggle design prevents valve overstroke. Compact. Rugged.
| Media | Air |
| Valve Function | 4-way Detented, Exhaust Center |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/8 NPSF |
| Number of Ports | 4 ports |
| Number of Positions | 3 positions |
| Options Included | 5/8-32 Thread Panel Mounting Hardware |
| Approx Size (in) HxWxD | 2.38 x 0.63 x 0.88 |
| Type of Operation | Toggle |
| Flow Coefficient (Cv) | 0.12 |
| Lubrication | Recommended |
| Pressure Range (psi) | 0-125 |
| Ambient Temperature Range (⁰F) | -20~180 |
| Wetted Materials | Brass, SST, Buna N |
| Weight (oz) | 3.0 |
