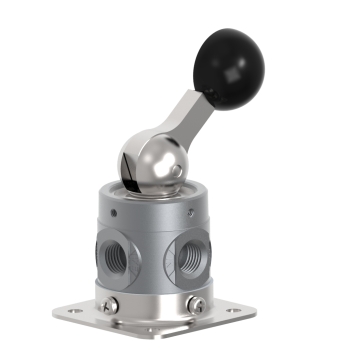

Diaphragm Poppet Manual Valves
Model: 250V31021A
| Request A Quote | Enter Quantity |
Product Details
| Media | Air, Inert Gas |
| Valve Function | Detent |
| Piping Type | Inline, Direct piping |
| Port Size | 1/4 NPSF |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Options Included | Assembled mounting base |
| Approx Size (in) HxWxD | 3.88 x 1.56 DIA |
| Type of Operation | Toggle |
| Flow - SCFM @ 100 psig | 60 |
| Flow - LPM @ 6.9 bar | 1699 |
| ESEOD (orifice) - in (mm) | 0.215 (5.45) |
| Flow Coefficient (Cv) | 0.83 |
| Lubrication | Not required |
| Pressure Range (psi) | 0-125 |
| Ambient Temperature Range (⁰F) | -20~225 |
| Wetted Materials | Zinc diecast, Brass, Buna N |
| Weight (oz) | 10.0 |
| Documentation | |
| Product Catalog Pages | Manual Valves.pdf |
| Product Catalog Pages | Manual Foot Valves.pdf |
| Promotional Flyer | Diaphragm-Poppet Valve Design.pdf |
| Promotional Flyer | Diaphragm-Poppet Toggle Valves.pdf |
| How To Order | How to Order_DPV Manual-Mechanical.pd... |
