TAC Miniature Push Button Valves

Model: 34F

Request A Quote Enter Quantity

Approx Size (in) HxWxD	1.56 x 2.69 x 3.44

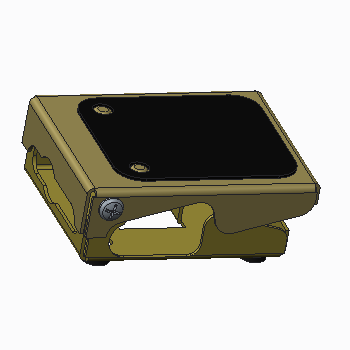

Accessory General Description	Foot Pedal Operator
Operator Function	Mechanically operates Push Button valve.
Type of TAC Operator	Palm, Foot or Knee Operator
Air Operator for 2 or 3 Way TAC Valve Models - sold separately:	3P, 31P, 2P
Air Operator for 4 Way TAC Valve Models - sold separately:	4P, 4PP, 41P, 41PP
Mounting Method to Push Button Valve:	Use valve's panel mounting nuts and lockwasher
Materials	Stamped metal, Nylatron

Documentation
Brochure / Manual	Specs_Manual & Mechanical Operators f...
