TAC Miniature Push Button Valve Operators

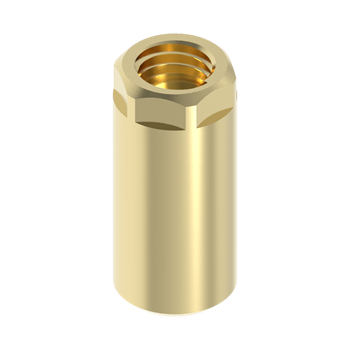

Model: 341A
| Request A Quote | Enter Quantity |
Product Details
| Approx Size (in) HxWxD | 1.38 x 0.56 HEX |
| Pilot Pressure Range (psi) | 22-125 |
| Operator Function | Accepts pilot pressure to operate Push Button valve. |
| Type of TAC Operator | Air Pilot Operator |
| Air Operator for 2 or 3 Way TAC Valve Models - sold separately: | 31P |
| Air Operator for 4 Way TAC Valve Models - sold separately: | 41P, 41PP, 42P, 42PP, 42PA |
| Mounting Method to Push Button Valve: | Threads to valve collar using 15/32-32 threads. |
| Materials | Brass, Buna N |
| Documentation | |
| Product Catalog Pages | Introduction to the TAC Product Line.... |
| Product Catalog Pages | Specs_Air Operators for Pushbutton Va... |
| Product Catalog Pages | Specs_Pushbutton Valves.pdf |
| Product Catalog Pages | Specs_TAC Brackets & Adaptors.pdf |
