| Port Size | 1/8 NPSF |
| Approx Size (in) HxWxD | 2.44 x 0.81 HEX |
| Pilot Pressure Range (psi) | 40-65 for optimum life |

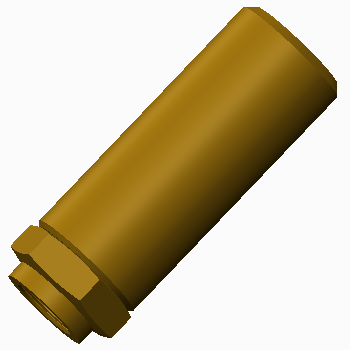

| Accessory General Description | Air Operator w/Reset Function (1/8 PIPE port) |
| Operator Function | Operator resets against existing pilot pressure within ~0.5 sec. |
| Type of TAC Operator | Air Pilot Operator with Reset |
| Air Operator for 2 or 3 Way TAC Valve Models - sold separately: | 31P |
| Air Operator for 4 Way TAC Valve Models - sold separately: | 41P, 41PP, 42P, 42PP, 42PA |
| Mounting Method to Push Button Valve: | To valve collar using 15/32-32 threads. |
