Product Details

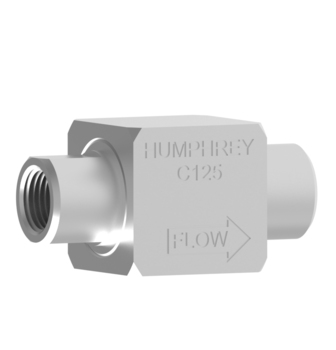

Small Check (One Way) Valve. Humphrey 1/8 pipe check valve seals tight. Internal molded shuttle allows free flow in one direction, checked flow in reverse. Aluminum body is light weight.
| Description | Check Valve |
| Media | Air, Inert Gas |
| Valve Function | Check |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/8 NPSF |
| Number of Ports | 2 ports |
| Number of Positions | 2 positions |
| Approx Size (in) HxWxD | 1.75 x 0.88 x 0.88 |
| Pressure Range (psi) | 0.5-125 |
| Ambient Temperature Range (⁰F) | 20-150 |
| Wetted Materials | Aluminum, Nylon, Buna N |
| Weight (oz) | 1.0 |
