Product Details

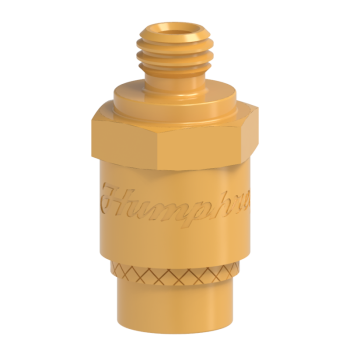

Miniature Check (One Way) Valve. Humphrey 10-32 UNF check valve seals tight. Internal molded shuttle allows free flow from male to female port and checks flow female to male. Brass construction.
| Description | Miniature Check Valve |
| Media | Air, Inert Gas |
| Valve Function | Check |
| Piping Type | Inline, Direct Piping |
| Port Size | 10-32 UNF |
| Number of Ports | 2 ports |
| Number of Positions | 2 positions |
| Approx Size (in) HxWxD | 0.69 x 0.38 HEX |
| Type of Operation | Pressure Differential |
| Pressure Range (psi) | 3-125 |
| Ambient Temperature Range (⁰F) | 20~150 |
| Wetted Materials | Brass, Buna N |
| Weight (oz) | 0.3 |
