Product Details

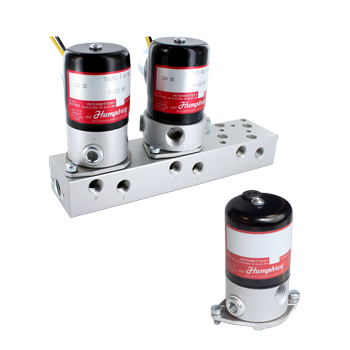

The compact, directing acting Tyna-Myte solenoid valve, 062 Series, has been a reliable choice in pneumatic automation for years. Select these 1/4 PIPE ported valves as single or double solenoid in a variety of voltages. Exhaust flow control is optional.
| Media | Air, Inert Gas |
| Valve Function | 4-way Single Solenoid, Spring Return |
| Voltage | 120/50/60 |
| Piping Type | Manifold, Subbase Piping |
| Number of Ports | 4 ports |
| Number of Positions | 2 positions |
| Type of Operation | Direct Acting Type |
| Flow - SCFM @ 100 psig | 9 |
| Flow - LPM @ 6.9 bar | 254.853 |
| ESEOD (orifice) - in (mm) | 0.0745 (1.893) |
| Flow Coefficient (Cv) | 0.10 |
| Lubrication | Not Required |
| Pressure Range (psi) | 0-125 |
| Response Time per Step (ms) | 4/13 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | -30~150 |
| Wetted Materials | Anodized Aluminum, Brass, Buna N |
| Weight (oz) | 15.0 |
| Electrical Entry | Lead Wires - 24 inches |
| Voltage Range | +10%, -15% |
| Power Consumption (w) | 8.2 |
