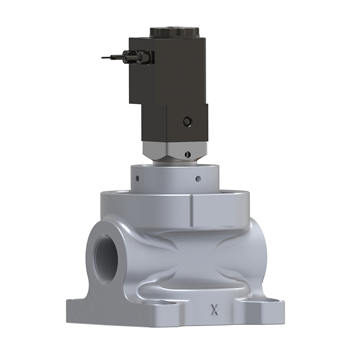

The B500E1 Series 3 Port Diaphragm-Poppet Pneumatic Solenoid Valve shifts crisply, seals tight with each cycle. Unique inert construction is simple, with few parts. Very reliable, even when controlling poor, moisture laden air. Smart choice in critical, clean dry air applications. Exceptional flow capacity with 1/2 inch orifice, 1/2 ports. Select normally closed or normally open function, plug-in or lead wire electrical entry and either 12VDC, 24VDC or 120VAC voltage. Operates from 30-125psi compressed air. Optional fluorocarbon diaphragms (buna standard). Plug exhaust port for excellent 2-way function. Mounting base and pipe plug sold separately.
| Media | Air, Inert Gas |
| Valve Function | Single Solenoid, Normally Open |
| Voltage | 12VDC |
| Piping Type | Inline, Direct Piping |
| Port Size | 1/2 NPT |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Size (in) HxWxD | 5.25 x 2.94 x 3.06 |
| Type of Operation | Internal Pilot Type |
| Flow - SCFM @ 100 psig | 160 |
| Flow - LPM @ 6.9 bar | 4530 |
| ESEOD (orifice) - in (mm) | 0.385 (9.78) |
| Flow Coefficient (Cv) | 2.67 |
| Lubrication | Not Required |
| Pressure Range (psi) | 30-100 (2-7) |
| Response Time - ON/OFF (ms) | 25/40 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 0~125 |
| Wetted Materials | Aluminum, SST, FKM |
| Weight (oz) | 62.0 |
| Electrical Entry | 19.5" Lead Wires |
| Voltage Range | +/-10% |
| Power Consumption (w) | 6.5 |
