Product Details

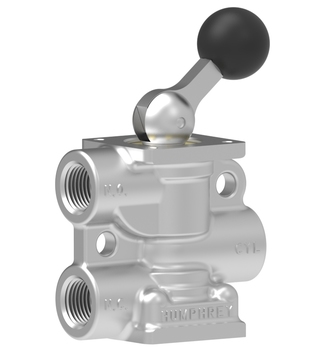

The 1/2 PIPE, 501 Series piston-poppet detented toggle valve achieves high flow and tight sealing from a compact body. Rugged, reliable in clean or poor air condtions. Select 2 or 3-way. 3-way models are multi-purpose (pipe normally closed or open). Multiple mounting options. Heavy duty lever may be rotated for positioning. Made in USA.
| Media | Air, Inert Gas |
| Valve Function | Detent |
| Piping Type | Inline, Direct piping |
| Port Size | 1/2 NPT |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Approx Size (in) HxWxD | 5.37 x 2 x 3.4 |
| Type of Operation | Toggle |
| Flow - SCFM @ 100 psig | 220 |
| Flow - LPM @ 6.9 bar | 6229 |
| ESEOD (orifice) - in (mm) | 0.452 (11.47) |
| Flow Coefficient (Cv) | 3.67 |
| Lubrication | Recommended |
| Pressure Range (psi) | 0-125 |
| Ambient Temperature Range (⁰F) | -20~225 |
| Wetted Materials | Aluminum, SST, Buna N |
| Weight (oz) | 19.0 |
| Return Type | Detent |
