| Approx Size (in) HxWxD | 1.5 x 1.5 x 1 |

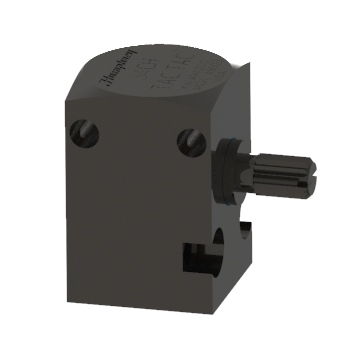

| Accessory General Description | Heavy Duty Cam Operator |
| Operator Function | Mechanically operates TAC Push Button valve. Add and position Micro Switch Roller Lever Arm P/N 6PA71 on knurled shaft (see Instruction Sheet pdf). |
| Type of TAC Operator | Heavy Duty Cam Mechanical Operator |
| Air Operator for 2 or 3 Way TAC Valve Models - sold separately: | 3P, 31P, 2P |
| Air Operator for 4 Way TAC Valve Models - sold separately: | 4P, 4PP, 41P, 41PP |
| Mounting Method to Push Button Valve: | To valve using 15/32-32 threaded collar. Use set screw to position TAC valve. Mount 34CH to fixture. Mount valve to 34CH. |
| Materials | Hardened aluminum, Hardened steel, SST |
